Bistable relays – Energy-efficient and reliable switching
IVY Metering relays are a key component in energy meters. They enable motors to be started and stopped smoothly, thereby contributing to improved energy efficiency and extended drive service life. High switching capacity, short response times, and a compact design make IVY Metering relays the ideal choice for modern automation solutions.

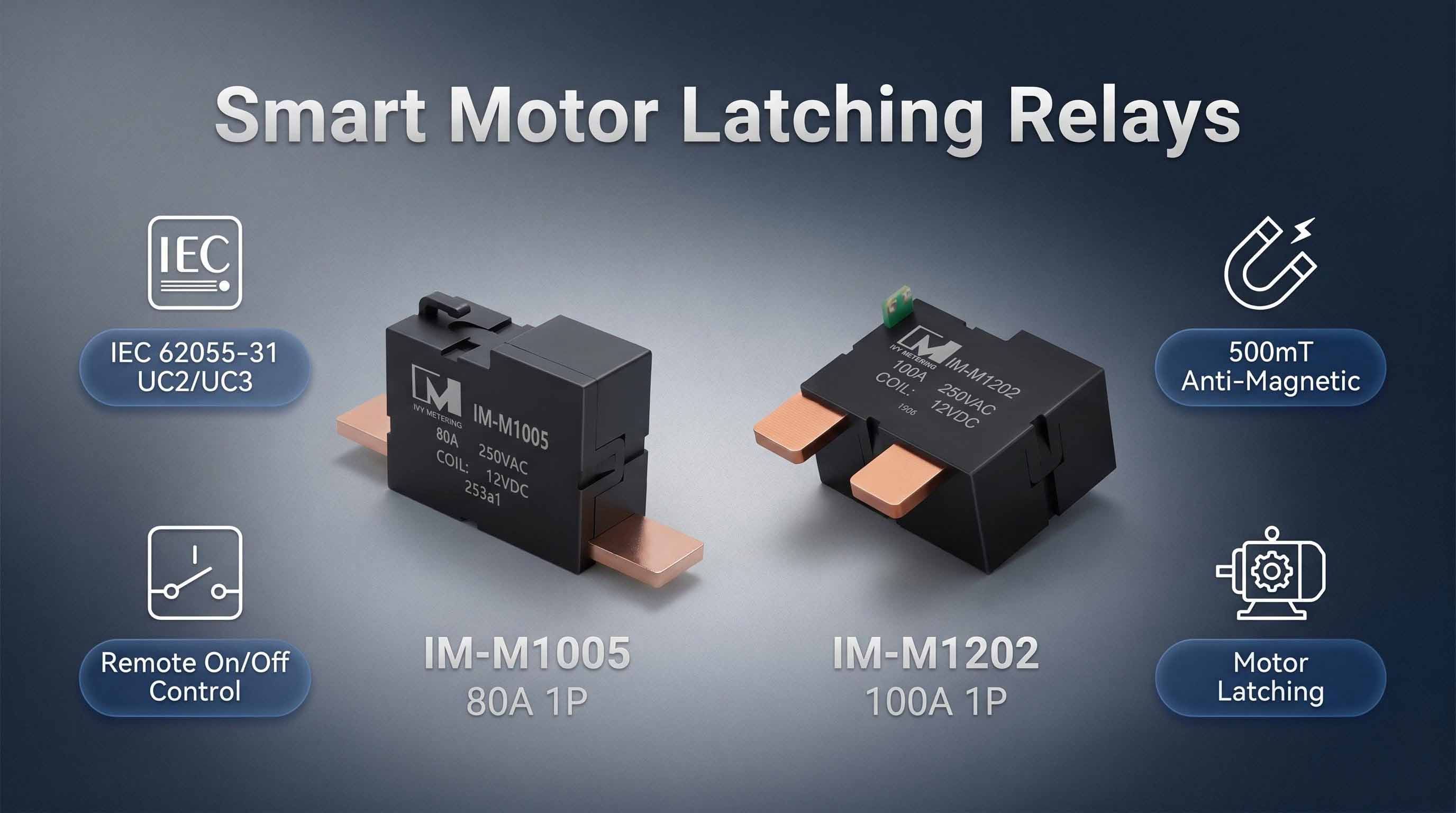

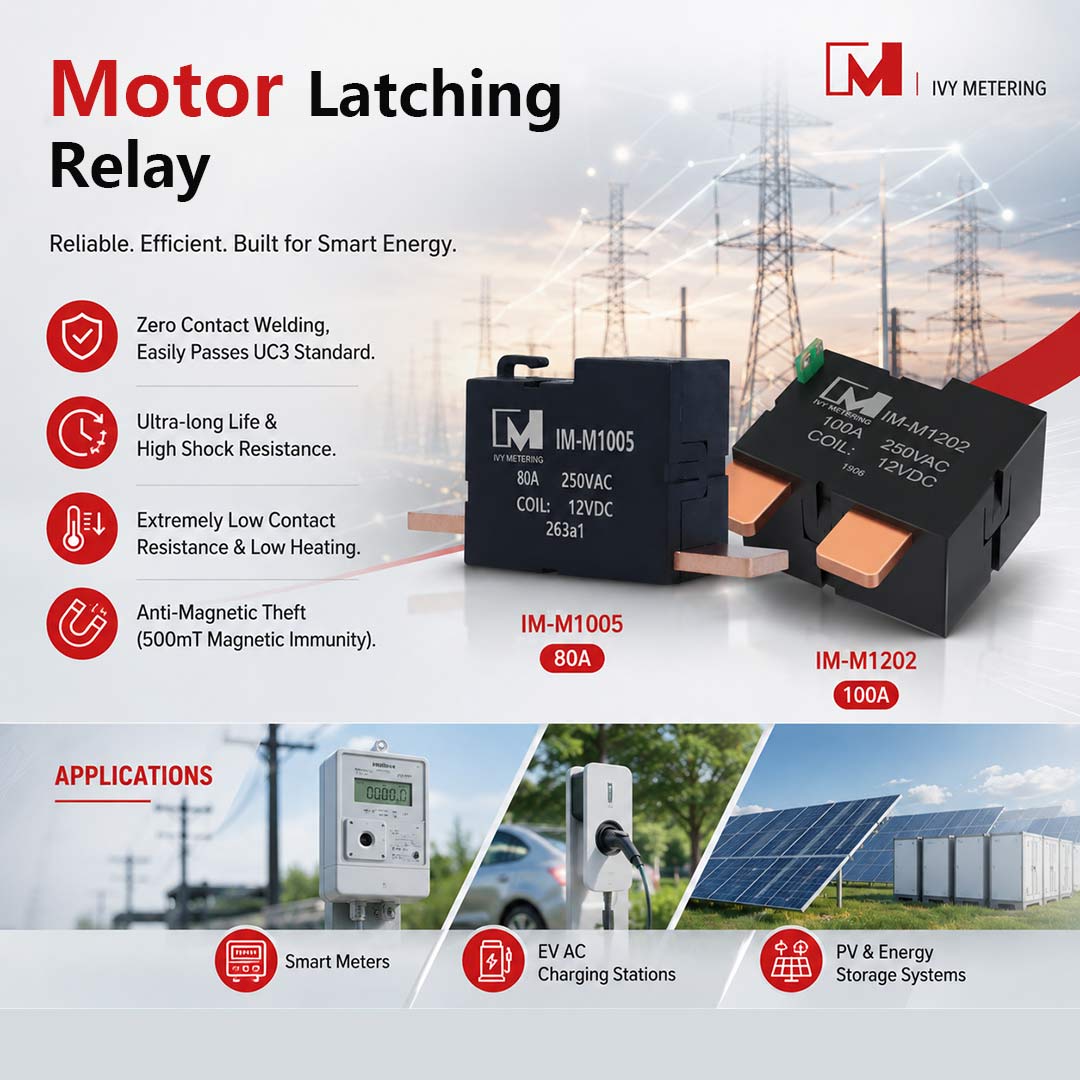

Bistable switching technology IM-M1202 relay with motor-driven for high shock and vibration resistance, which is ideal for industrial applications:
1. Zero Contact Welding & High Short-Circuit Withstand (UC3/IEC 62052-11/IEC-62055-31 Standard), Reliable breaking under extreme short-circuit conditions.
2. Anti-Magnetic Theft (Magnetic Immunity 500mT), Resist external magnetic interference, protect revenue and data security.
3. Low Contact Resistance & Low Temperature Rise, High-conductivity contacts for stable performance and energy efficiency.
4. Compact & Space-Saving Design, Optimized size for easy integration in metering and control systems.
Product Parameter
| Basic Data | Dimensions(mm) | 29×23.5×16 | |
| Weight ( g ) | ≈40g | ||
| Contact Arrangement | 1A/1B | ||
| Contact Material | AgSnO2 | ||
| Ambient Temperature | -40~+75ºC | ||
| Vibration | 10~50Hz,1.5mm | ||
| Shock | 1000m/s²,(100g) | ||
| Specifications Data | Power Consumption | <3W | |
| Operating Voltage | 10.5-16V | ||
| Max. Switching Current | 100A | ||
| Surge Current | 6000A/10ms | ||
| Motor Resistance | 32(1±15%)Ω | ||
| Contact Voltage | <60mV | ||
| Contact Resistance | ≤1.0mΩ | ||
| Dielectric Strength | Motor to Contact | >4000VAC,50/60Hz 1min | |
| Across Open Contact | >2000VAC,50/60Hz 1min | ||
| Electrical Life(120 cycles/H) | 10,000 (resistance 5 k + perceptual 5 k, co ϕ = 0.5) | ||
| Mechanical Life(3600 cycles/H) | 100,000 | ||
| Pulse Time | ≥60ms(Advise 60ms~100ms) | ||
| Picking-up Time | ≤60ms | ||
| Release Time | ≤60ms | ||
| Insulation Resistance | >1000MΩ(500VDC) | ||
Bistable relays can be used to switch applications in a reliable and energy-saving manner. Bistable relays allow for two stable switch positions even when powered down. In comparison to monostable relays, just a short switching impulse of a few milliseconds is enough to switch the relay into a defined switch position. Only a low nominal power level is required. This saves energy and reduces heat generation. In addition, the relays have high vibration and shock resistance.
Our latching series relay are specifically made to cater for the requirements of smart meters, typical features include:
Compact in size
Low cost and very competitive price
Pulse coil driven with negligible energy consumption
Choices of single and dual coils
Very low temperature rise and minimal coil heat
Magnetic immunity and anti-tempering
Long mechanical and electrical life
Single phase models and polyphase models (with double-pole and three-pole relays available)
Wide range of contact current ratings (60A to 200A)
Meeting various international standards (e.g. UC3 )
Customised assemblies with stranded wires, brass terminals, CTs, shunts and even meter cases
